Description
Description:
ERNiCrMo-3 Chemical Composition:
Specifications
*ERNiCrMo-3 is manufactured by NiWire Industries under AWS A5.14.
It is used for welding nickel-chromium-molybdenum alloy (ASTM B 443, B 444, and B 446 having UNS number N06625) to itself, to steel, to other nickel-base alloys, for cladding steel with nickel-chromium molybdenum weld metal, and for welding the clad side of joints in steel with nickel-chromium-molybdenum alloy using the GTAW, GMAW, SAW, and PAW processes. This filler metal is recommended for applications where the operating temperature ranges from cryogenic to 1000°F [540°C].
Available Product Forms

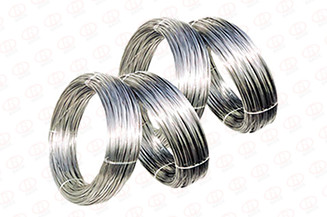

ERNiCrMo-3 is available on spool (Precision Layer Wound) and in cut straight lengths. We have controlled cast and helix for MIG wires.| Available in | Diameters | Length |
|---|---|---|
| Straight Rods(TIG)-inch | .047 .062 .093 .125 | 36 or 39 |
| Straight Rods(TIG)-mm | 1.2 1.6 2.4 3.2 | 915 or 1000 |
| Spooled Wire (MIG)-inch | .030 .035 .040 .045 | Spool |
| Spooled Wire (MIG)-mm | 0.8 0.9 1.0 1.14 | Spool |
ERNiCrMo-3 Chemical Composition:
| Grade | Ni% | C%* | Mn% | Fe%* | S% | Cu% | Si% | Al% | Cr% | Ti% | Nb% | Mo% | P% |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ERNiCrMo-3 | Min 64 | Max 0.1 | Max 0.5 | Max 1.0 | Max 0.015 | Max 0.50 | Max 0.50 | Max 0.40 | 22.0-23.0 | Max 0.40 | 3.6-4.5 | 9.2-10.0 | Max 0.015 |
Specifications
| Grade | American | European |
|---|---|---|
| ERNiCrMo-3 |
AWS A5.14, ERNiCrMo-3* ASME II, SFA-5.14, ERNiCrMo-3 ASME IX, F-No. 43 UNS N06625 |
BS 2901 (NA43) DIN 1736 SG-NiCr21Mo9Nb Werkstoff Nr. 2.4831 Europe NiCr22Mo9Nb |
*ERNiCrMo-3 is manufactured by NiWire Industries under AWS A5.14.
