ERNiCr-3 is used for welding nickel-chromium-iron alloy (ASTM B 163, B 166, B 167, and B 168 having UNS number N06600) to itself, for the clad side of joints in steel clad with nickel chromium-iron alloy, for surfacing steel with nickel-chromium iron weld metal, for dissimilar welding of nickel-base alloys, and for joining steel to stainless steel or nickel-base alloys using the GTAW, GMAW, SAW, and PAW processes.
Available Product Forms

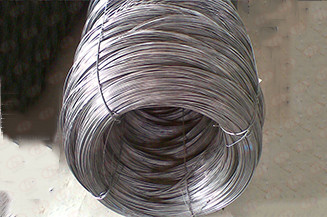

ERNiCr-3 is available on spool (Precision Layer Wound) and in cut straight lengths in different sizes as below:
ERNiCr-3 is available on spool (Precision Layer Wound) and in cut straight lengths in different sizes as below:
| Available in | Diameters | Length |
|---|---|---|
| Straight Rods(TIG)-inch | .047 .062 .093 .125 | 36 or 39 |
| Straight Rods(TIG)-mm | 1.2 1.6 2.4 3.2 | 915 or 1000 |
| Spooled Wire (MIG)-inch | .030 .035 .040 .045 | Spool |
| Spooled Wire (MIG)-mm | 0.8 0.9 1.0 1.14 | Spool |
ERNiCr-3 Chemical Composition:
| Grade | Ni% | C% | Mn% | Fe% | S% | Cu% | Si% | Cr% | Ti% | Nb% | P% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ERNiCr-3 | Min 67 | Max 0.1 | 2.5-3.5 | Max 3.0 | Max 0.015 | Max 0.50 | Max 0.50 | 18.0-22.0 | Max 0.75 | 2.0-3.0 | Max 0.03 |
Specifications
| Grade | American | European |
|---|---|---|
| ERNiCr-3 |
AWS A5.14, ERNiCr-3* ASME II, SFA-5.14, ERNiCr-3 ASME IX, F-No. 43 AMS 5836 |
BS 2901 (NA35) DIN 1736 SG-NiCr20Nb Werkstoff Nr. 2.4806 Europe NiCr20Mn3Nb |
*ERNiCr-3 is manufactured by NiWire Industries under AWS A5.14.
